For discharge of liquid orgas from vessels,separators, treaters,knockouts,and similar liqui accumulators.
For Back Pressure or Pressure Reducing applications
with pressure pilots.
Line Design
Material Size Pressure
Steel 1"4000 psig Max. Topworks & Parts Inner Valves List
Pg.10.1 Pg.10.2

TEMPERATURE:
+30°to+500°F 0°to+260°C
APPLICATION:
Crude Oil &Gas Production(High heat),Steam
Flood Production Chemicals (corrosion inhibitors)Amine Sweetener Systems,Gasoline,Diesel,FuelOil Systems

FLUID/GAS:
Crude Oil &Gas Production,H2S,Steam,Petroleum
fluids,Sea Water

TEMPERATURE:
-15°to +300°F -26°to+149°C
APPLICATION:
Crude Oil &Gas Production w/H2S,Wet C02

FLUID/GAS:
Crude Oil &Gas,H2S,Wet C02,Sea Water

TEMPERATURE:
Buna-N:
-40°to+220°F
-40°to+105°C
Low-Temp
-85°to+120°F
-65°to+49°C
APPLICATION:
Crude Oil &G as Production Glycol Dehydrators, Gasoline,Jet Fuel&Diesel Fuel Pumping,WaterDisposal, Methanol Injection Pumps,Water pump seals,hydraulic pump seals
FLUID/GAS:
Crude Oil&Gas,Good to Poor in Sour Production(See HSN),Water,Glycols,HydraulicOils,Resistance to crude oil in the presence of H2S and amines,Diesel fuel,fuel oils

DO NOT USE WITH:
Aromatic hydrocarbons,chlorinated hydrocarbons,
phosphate esters (hydraulicfluids)

TEMPERATURE: -40°to+400°F -20°to+204°C
APPLICATION:
Chemically InertElastomer Best instatic Do not use at low temps
FLUID/GAS:
Almost All Chemicals

TEMPERATURE: -10°to+350°F -23°to+177°C
APPLICATION:
Crude Oil &Gas Production,Glycol Dehydrators, Gasoline,Jet Fuel &DieselFuel Pumping,Water Disposal, Methanol Injection Pumps.(Also Vacuum Service)(Gas permeability is very low)
FLUID/GAS:
Crude Oil &Gas,H2S,Propane,Gasoline,Diesel,Fuel Oil Systems
DO NOT USE WITH:
Hot Water,Not preferred forwet CO2,Methyl Alcohol, Amines,Sodium hydroxide solutions

TEMPERATURE: -40°to+220°F -40°to+104°C
APPLICATION:
High abrasion resistance Seats,Diaphragms
FLUID/GAS:
Crude Oil gas and Water,H2S,propane,butane,fuel mineral oil andgrease

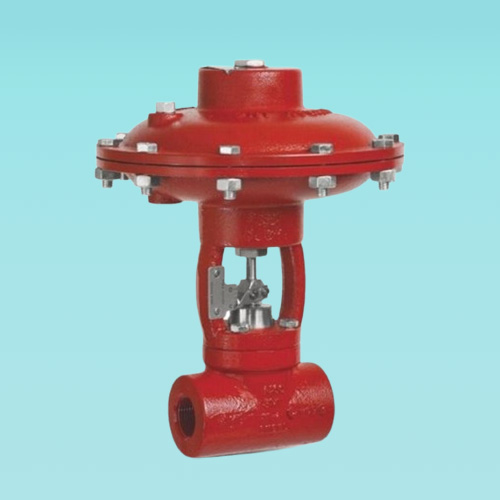

For discharge of liquid or gas from vessels,separators,treat- ers,knockouts and other similar liquid accumulators.
For back pressure or pressure reducing applications with pressure pilots.

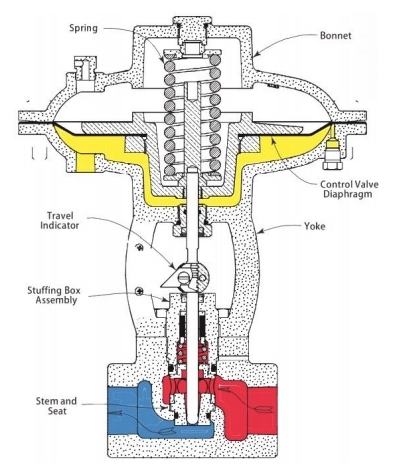

FEATURES:
Compactdesign
O Ring sealed seat
Valve travel indicator
Field reversible topworks
Teflon packed stuffing box

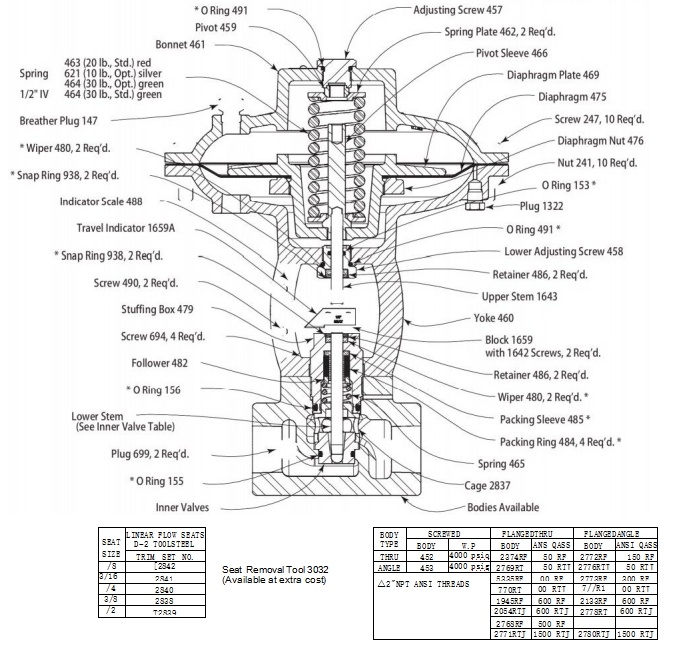

TOPWORKS:
Standard topworks have an effective diaphragm area of
approximately30 square inches for 1"and 65 square inches for 2"control valves.

SPRINGS:
The 1"HPCVsprings are available for diaphragm pressures of 10.20,and 30 psig
The2"HPCV springs are available for diaphragm pressures
of 15,20,and 30 psig.
Unless otherwise specified,all 1"HPCV′s with 1/2"INNER
VALVES get 30 psig spring others get 20 psig.spring,all 2" HPCV′s will be furnished with springs as follows 2000psig.W.P. valves,20Ib.springs and 4000 psig.W.P.valves,30 Ib.springs.
Top Adjusting Screwmaybe adjusted tovary the spring ten sion slightly;this affects pressure required to actuate valve.

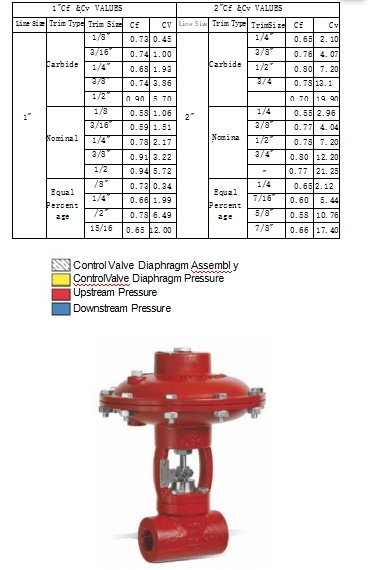

CAPACITIES:
Refer to the Table of Contents

1"HPCV-1/2"maximum 2"HPCV-3/4"maximum
ACTUATOR WORKING PRESSURE: 10-30 psig normal (see spring ranges)
45 psig maximum
WORKING PRESSURE:
1"HPCV-4000 psig
2"HPCV-2000 &4000 psig
TEMPERATURE RANGE: -20°to 500°F
INNER VALVE SPECIFICATIONS:
The 1"HPCV standard valve plugs consists of a carbide ball rigidly connected to a 303 stainless steel stem.Standard seats are made of heat treated tool steel.
The2"HPCV standard valve plugs for 1/2"and smaller con- sist of a carbide ball rigidly connected to a 303 stainless steel stem.Standard valve plugs for 3/4"and 1"consist of a hardened high chrome alloy ball rigidly connected to a 303 stainless steel stem.Standard seats are made of heat treated tool steel.

Inner valves can be made from a wide selection of materials.Specify when ordering
