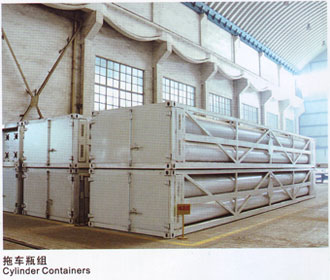

Natural Gas Storing and Transporting Equipments (HIGH-PRESSURE CNG TUBE TRAILERS)
2 Features of High Pressure CNG Tube Trailer: |
  |
||
項目Items |
單位 |
HDS9340GGQ型高壓氣體運輸半掛車 |
HDS9340GGQ型高壓氣體運輸半掛車 |
公稱壓力Pressure |
Mpa |
20 |
20 |
使用溫度Working temperature |
。C |
-50~60 |
-50~60 |
水壓試驗壓力Hydrostatic Testing Pressure |
Mpa |
33.4 |
33.4 |
氣密試驗壓力Alright Testing Pressure |
Mpa |
20 |
20 |
鋼瓶規格Size of the Cylinder |
mm |
559x16.39x10975 |
559x16.39x10975 |
鋼瓶數量Numbers of Cylinder |
|
8 |
10 |
單支鋼瓶重量Weight of a single cylinder |
M3 |
2.25 |
2.25 |
總?cè)莘eTotal Volume |
M3 |
18 |
22.5 |
單支鋼瓶重量Total Weight? of Semi-trailert |
Kg |
2800 |
2800 |
半掛車整備質量Total weight of semi-trailer |
Kg |
30730 |
35930 |
充裝介質Media Field In |
|
CNG???? He???????? H2 |
CNG? He???? H2 |
充裝總?cè)莘eTotal Volume |
Nm3 |
4550???? 3215?????? 3125 |
5680?? 4074?? 3965 |
充裝重量Weight |
Kg |
3200???? 574??????? 281 |
4070??? 721??? 356 |
滿載總重量Total Weight Under Full Load |
Kg |
33930??? 31304????? 31011 |
40000??? 36651? 36286 |
外形尺寸Total Dimension |
mm |
??? 12192x2438x1400 |
12200x2480x3355 |
2 The high-pressure seamless cylinder neck-spinning technology |
 |
||
