2 OPERATING CONDITIONS :
Inlet gas temperature: Ambient temperature
Suction pressure range: 0.15～0.35MPa(g)
Discharge pressure: 25MPa (g)
Discharge temperature: ≤Ambient temperature+15%
Capacity: 420～740Nm3/h
Low vibration, low noise, convenient for operation and maintenance, safe and reliable, highly efficient and energy saving.
|
2 Features :
High rigidity frame, reasonable internal rib configuration, detachable cylindrical type crosshead guide.
All driving parts are forged with high quality alloy steel.

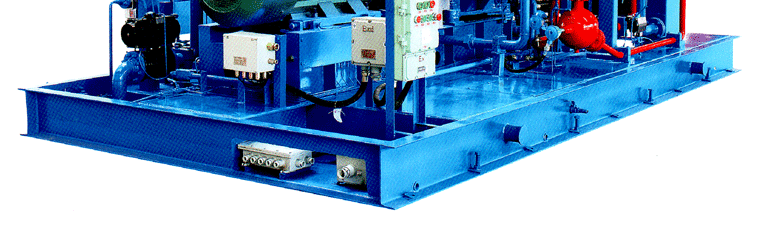

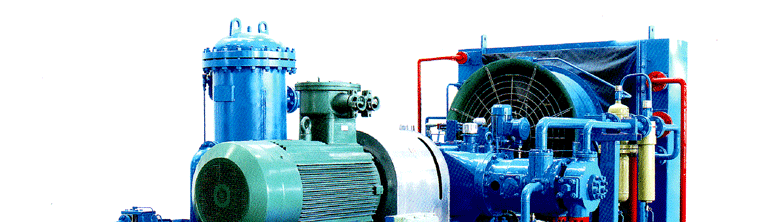

The unit is air-cooling, skid-mounted structure, and easy to install.
With sound insulation enclosure of special design the external noise of the unit lower than 76dBA.
PLC control system monitors the status, temperature and pressure, automatic start-up and shutdown of the unit is realized.
The unit is equipped with perfect safety devices. All electrical components chosen are in conformity to the Ex-proof requirements of natural gas environment.
The skid-mounted enclosure is equipped with roof rail, pulley and Ex-proof lamp inside.
Gas valves and packing of international brands are adopted with reliable quality and long service life. |
|
