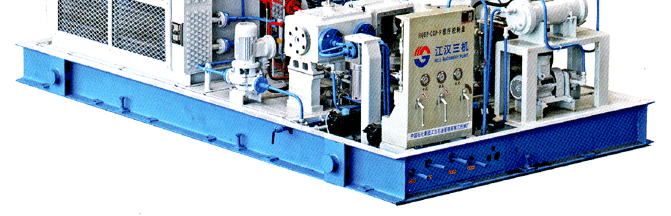

CNG son-station compressor



	2 Applications The model of D-0.28/ (30-200)-250 unit is skid-mounted with the main frame and auxiliary unit are installed on the same skid which is covered with acoustic enclosure. Within it is equipped with Ex-proof lamp, exhaust fan, anti-electrostatic instrument. The structure of the compressor is symmetrical balanced reciprocating piston type, two-stage compression. The tandem cylinder on the working throw, balance throw on another which is used to balance reciprocating inertia force and reduce unit vibration. The cooling type is air-water combination cooling. The packing of cylinder and piston rod is less oil lubrication. The unit can directly refuel the vehicle with high or low pressure and refuel the storage tank with middle or high pressure bank through the control the priority sequence control system .


	2 OPERATING CONDITIONS : Inlet pressure scope: 3.0-20MPa (g) Discharge pressure: 25MPa (g) Discharge temperature: ≤ Ambient temperature+15% Supply capacity: 500-2200Nm3/h Small vibration, low noise, convenient operation and maintenance, reliable, safe, high efficiency energy-saving	2 FEATURES : High rigidity frame, with reasonable internal rib configuration, detachable barrel crosshead guide All running gears is forged with high quality alloy steel The unit with Air-water combination cooling, skid-mounted enclosure structure, easy to install With sound insulation enclosure of specially design the external noise is lower than 76rBA PLC control system monitors the status, temperature and pressure, automatic start-up and shutdown of the unit is realized. The unit is equipped with reliable safety devices. All electrical components are in conformity to the Ex-proof requirements of natural gas environment The skid-mounted sound enclosure is equipped with roof rail, pulley and Ex-proof lamp inside Gas valves and packing of international brands assure reliable quality and long service life .

Specifications
Compressor			Motor
Model		D-0.8/(30- 200) -250	Model		YB315L2-6(8)
Compression media		Natural gas	Rotary speed (r/min)		980(740)
Nominal flow rate(m3/min)		0.28	Protection grade		Junction box
Std flow rate (Nm3/d)		500-2200	Rated voltage	Motor shells	IP54
Compression stage		2		Others	IP44
Coupling type		Flexible Disc coupling	Rated power(kW)		75(90)
Cooling type		Water and air cooling	Unit weight(kg)		12000
Rotary speed (r/min)		1000	Overall dimension(Lmm×Wmm×Hmm)		4500×2500×2600
Suction pressure(MPa)		3-20
Discharge pressure		25
Suction temperature(℃)		≤40
Inter stage discharge temperature(℃)		≤150
Final outlet temperature(℃)		≤45
Lubrication type	Crankshaft, connecting, rod, cross head	Pressure lubrication
	Cylinder, packing	Less lubrication
