CNG Daughter Station Solution

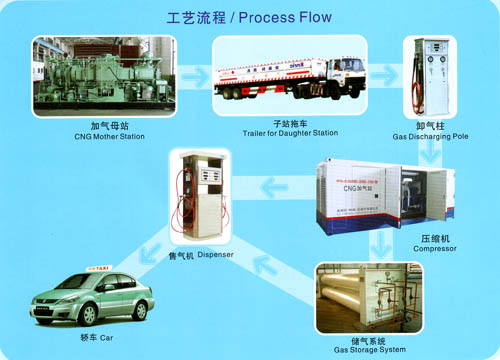

CNG daughter station is the compressed natural gas one which gets the CNG from truck-mounted gas storage cylinders, then fill the CNG automobiles. Process system consists of: CNG discharging pole, natural gas compressor, CNG storage equipment, CNG filling equipment, safety protection equipment, electrical equipment, CNG pipelines and accessories etc.
 |
 |
||

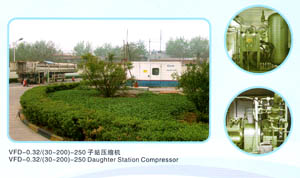

| CNG Daughter Station Compressor | |||
2Product Features:
1、Safety and Reliability—All wearing parts are those made by famous company, and service life can be reached 600-8000 hours.
2、High Efficiency and Energy Conservation—Average capacity is 1500 Nm3/h, low noise, economical operating cost, zero emission when recovering exhaust gas.
3、Structural Diversity—V type, D type and etc.
4 、High Automation—Siemens PLC, ABB soft starter (or frequency conversion), Acousto-optic alarm with system stop when the fault happens. Unattended operation..
2Scope of Application:
1、One Set Capacity: 1000~1500Nm3/h
2、Driving Power: 45~90KW;
3、Inlet Pressure: 2~20Mpa
4 、Power Supply: Voltage: 380/220V
5 、Medium: Natural gas (comply with the standard of GB18047-“Compressed natural gas for vehicles”)
No. |
Inlet Pressure (Mpa) |
Model |
Capacity (Nm3/h) |
Equipment Power |
Cooling Mode |
Weight (T) |
Dimension L×W×H (mm) |
1 |
3.0 ~20.0 |
VFD-0.26/(30-200)-250 |
1000 |
55 |
Air cooling |
9.65 |
5538×2438×2438 |
2 |
VF-0.32/(30-200)-250 |
1500 |
75 |
5.5 |
5538×2134×1680 |
||
3 |
VFD-0.32/(30-200)-250 |
1500 |
75 |
9.65 |
5538×2438×2438 |
||
4 |
DFD-0.32/(30-200)-250 |
1500 |
75 |
8.5 |
4400×2610×2591 |
||
5 |
2.0 ~20.0 |
VFD-0.32/(20-200)-250 |
1500 |
75 |
9.65 |
5538×2438×2438 |
