CNG Mother Station Solution

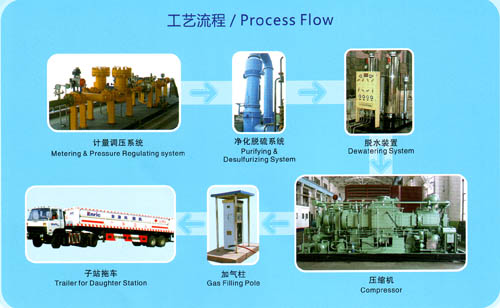

CHG mother station is the compressed natural gas one which for filling tuck-mounted gas storage cylinders. Process system consists of: Metering & pressure regulating equipment, desulfurizing and dewatering equipment, natural gas compressor, CNG filling equipment, safety protection equipment, electrical equipment, CNG pipelines and accessories etc.
 |
 |
||
 |
|||
2Product Features:
1、Safety and Reliability—All wearing parts are those made by famous company, and service life can be reached 600-8000 hours.
2、Environmental Protection and Energy Conservation—Small vibration, low noise, economical operating cost.
3、Structural Diversity—V type, W type and C type etc.
4 、High Automation—Siemens PLC, ABB soft starter (or frequency conversion), Acousto-optic alarm with system stop when the fault happens.
2Scope of Application:
1、One Set Capacity: 100~6000Nm3/h
2、Driving Power: 45~400KW; Driving mode: Electrical motor, natural gas engine
3、Inlet Pressure: 0.2~8Mpa
4 、Power Supply: Voltage: 380/220V 6/10KV
5 、Medium: Natural gas (comply with the standard of GB17820-Class Ⅱ)
No. |
Inlet Pressure (Mpa) |
Model |
Capacity (Nm3/h) |
Equipment Power |
Cooling Mode |
Weight (T) |
Dimension L×W×H (mm) |
1 |
0.2~0.4 |
D-5/(2-4)-250 |
900-1500 |
315 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
2 |
0.3~0.5 |
VF-3.2/(3-5) -250 |
770-1150 |
220 |
Air cooling |
14 |
6300×2500×2500 |
3 |
0.3~0.6 |
D-4.2/(3-6) -250 |
1000-1760 |
280 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
4 |
0.4~0.7 |
D-3.6/(4-7) -250 |
1050-1730 |
315 |
23 |
5000×3500×2500 |
|
5 |
0.7~1.2 |
D-2.6/(7-12) -250 |
1250-2000 |
280 |
20 |
5000×3500×2500 |
|
6 |
0.7~1.3 |
VF-0.76/(7-13) -250 |
365-640 |
100 |
Air cooling |
8 |
6000×2200×2230 |
7 |
0.8~1.2 |
D-2.8/(8-12) -250 |
1650-2150 |
280 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
8 |
0.9~1.4 |
V-2/(9-14) -250 |
1200-1800 |
280 |
Water cooling |
12 |
6500×2525×2300 |
9 |
1.4 |
VFD-2/14-210 |
1800 |
280 |
Air cooling |
15 |
1000×4000×3000 |
10 |
1.2~1.4 |
D-2.5/(12-14) -250 |
1950-2250 |
280 |
Water(mixed) cooling |
23 |
5000×3500×2500 |
11 |
1.0~1.6 |
VF-2/(10-16) -250 |
1320-2000 |
280 |
Air cooling |
10 |
5600×2500×2300 |
12 |
D-2.8/(10-16) -250 |
1800-2850 |
355 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
|
13 |
1.6~2.0 |
?V-1.43/(16-20) -250 |
1460-1800 |
220 |
Water cooling |
11 |
6000×2500×2250 |
14 |
D-2.4/(16-20) -250 |
1450-3000 |
355 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
|
15 |
1.6~2.3 |
D-2.4/(16-23) -250 |
2450-3150 |
355 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
16 |
1.8~2.3 |
V-1.8/(18-23) -250 |
2000-2590 |
280 |
Water cooling |
12 |
6500×2520×2200 |
17 |
2.0~3.5 |
D-1.45/(20-35) -250 |
1830-3100 |
280 |
Water(air mixed) cooling |
23 |
5000×3500×2500 |
18 |
1.9~3.5 |
V-0.8/(19-35) -250 |
960-1720 |
160 |
Water cooling |
13 |
6500×2520×2200 |
19 |
2.5~4.0 |
VF-1/(25-40) -250 |
1560-2700 |
220 |
Air cooling |
13.5 |
4250×2525×2100 |
20 |
3.0~4.0 |
D-1.65/(30-40) -250 |
3100-4100 |
280 |
Water(air mixed) cooling |
23 |
5000×3500×2100 |
21 |
4.0~6.0 |
D-1.65/(40-60) -250 |
3600-5300 |
315 |
Water(air mixed) cooling |
23 |
5000×3500×2100 |
22 |
5.0~7.0 |
D-1.3/(50-70) -250 |
3970-5530 |
315 |
Water(air mixed) cooling |
23 |
5000×3500×2100 |
23 |
6.0~7.0 |
D-1.3/(60-70) -250 |
4758-5530 |
315 |
Water(air mixed) cooling |
23 |
5000×3500×2100 |
24 |
4.0~8.0 |
D-1.2/(40-80) -250 |
3000-5830 |
315 |
Water(air mixed) cooling |
23 |
5000×3500×2100 |
