RTJ-※/※N Series Indirect-action Mode Pressure Regulator for Gas
2 Application |
|||
2 Main Technical Parameters |
2 Features |
||

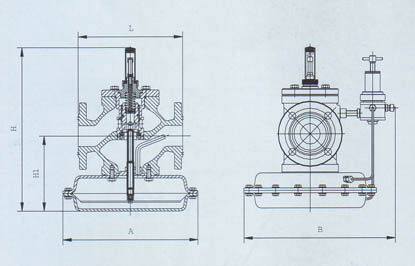

Code |
A |
B |
L |
H1 |
H |
Inlet & Outlet Flange |
RTJ-50/※N |
330 |
377 |
254 |
181 |
395 |
DN50 |
RTJ-80/※N |
420 |
464 |
298 |
282 |
498 |
DN80 |
RTJ-100/※N |
420 |
464 |
352 |
302 |
538 |
DN100 |
RTJ-150/※N |
420 |
464 |
451 |
322 |
578 |
DN150 |
RTJ-50/※N Flow Meter???????? ??(Cross-reference for natural gas media)
Outlet pressure(KPa) |
??????????????? Inlet Pressure(MPa) |
||||||||
0.1 |
0.2 |
0.4 |
0.6 |
0.8 |
1.3 |
1.5 |
2.0 |
2.3 |
|
0.03 |
290 |
580 |
1123 |
1650 |
2165 |
2887 |
3561 |
5020 |
6300 |
0.08 |
190 |
580 |
1123 |
1650 |
2165 |
2887 |
3561 |
5020 |
6300 |
0.12 |
- |
500 |
1123 |
1600 |
2105 |
2752 |
3420 |
5020 |
6000 |
0.2 |
- |
? - |
1123 |
1600 |
2105 |
2752 |
3420 |
4987 |
6000 |
0.3 |
? - |
? - |
1058 |
1543 |
2000 |
2651 |
3264 |
4865 |
6000 |
0.4 |
? - |
? - |
? - |
1543 |
2000 |
2651 |
3264 |
4865 |
6000 |
RTJ-80/※N Flow Meter?????????? (Cross-reference for natural gas media)
Outlet pressure(KPa) |
??????????????? Inlet Pressure(MPa) |
||||||||
0.1 |
0.2 |
0.4 |
0.6 |
0.8 |
1.3 |
1.5 |
2.0 |
2.3 |
|
0.03 |
550 |
1280 |
2100 |
3100 |
4000 |
6500 |
7895 |
10550 |
12000 |
0.08 |
550 |
1280 |
2080 |
3100 |
4000 |
6500 |
7895 |
10550 |
12000 |
0.12 |
- |
1280 |
2080 |
3000 |
3850 |
6000 |
7865 |
10060 |
11210 |
0.2 |
- |
? - |
1950 |
3000 |
3850 |
6000 |
7865 |
10060 |
11210 |
0.3 |
? - |
? - |
1500 |
2800 |
3742 |
5400 |
7520 |
10060 |
10750 |
0.4 |
? - |
? - |
? - |
2800 |
3742 |
5400 |
7520 |
10060 |
10750 |
RTJ-100/※N Flow Meter????????? (Cross-reference for natural gas media)
Outlet pressure(KPa) |
??????????????? Inlet Pressure(MPa) |
||||||||
0.1 |
0.2 |
0.4 |
0.6 |
0.8 |
1.3 |
1.5 |
2.0 |
2.3 |
|
0.03 |
625 |
1250 |
2700 |
3750 |
5400 |
7500 |
8900 |
12500 |
14375 |
0.08 |
625 |
1250 |
2700 |
3750 |
5400 |
7500 |
8900 |
12500 |
14375 |
0.12 |
- |
1000 |
2500 |
3700 |
5000 |
7200 |
8600 |
12000 |
14200 |
0.2 |
- |
? - |
2500 |
3700 |
5000 |
7200 |
8600 |
12000 |
14200 |
0.3 |
? - |
? - |
2500 |
3650 |
4520 |
6854 |
8250 |
11000 |
13100 |
0.4 |
? - |
? - |
? - |
3650 |
4520 |
6854 |
7250 |
11000 |
13100 |
RTJ-150/※N Flow Meter????????? (Cross-reference for natural gas media)
Outlet pressure(KPa) |
??????????????? Inlet Pressure(MPa) |
||||||||
0.1 |
0.2 |
0.4 |
0.6 |
0.8 |
1.3 |
1.5 |
2.0 |
2.3 |
|
0.03 |
921 |
1600 |
3574 |
6005 |
8900 |
15800 |
26020 |
34000 |
40000 |
0.08 |
900 |
1600 |
3123 |
6005 |
8600 |
14210 |
26020 |
34000 |
40000 |
0.12 |
- |
1320 |
3021 |
5840 |
8600 |
18650 |
25000 |
33000 |
38000 |
0.2 |
- |
? - |
2850 |
5840 |
8250 |
15361 |
25000 |
33000 |
38000 |
0.3 |
? - |
? - |
2400 |
5800 |
7250 |
12358 |
23000 |
32000 |
35000 |
0.4 |
? - |
? - |
? - |
5800 |
7000 |
10745 |
23000 |
32000 |
35000 |
2 (PS: The figures showed in the chart are the flows when the Natural gas relative density reached 0.6 under the standard statement. Other gas flow should be multiplied by their conversion coefficient: Propane: 0.63, Butane: 0.55, Gas: 0.78 Nitrogen: 0.79) |
|||
